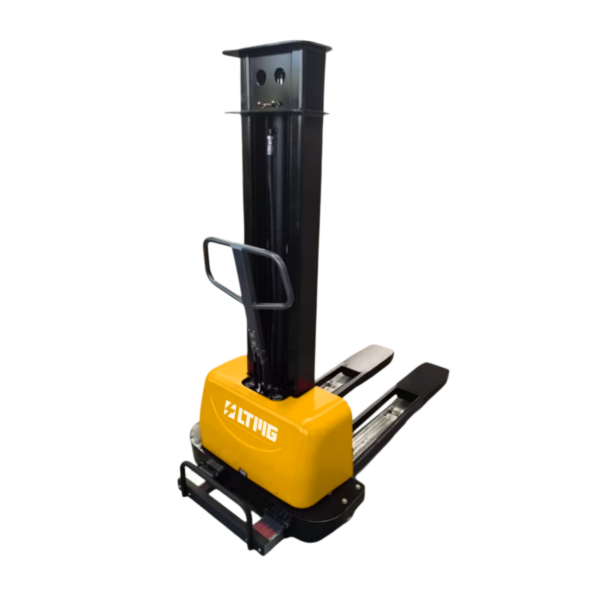

LTMG SERB10 Semi-Electric Self-Lifting Stacker
- Rated Capacity (kg): 1000
- Load Centre (mm): 420
- Lift Height (mm): 800/900/1000/1100/1200/1300/1500/1600
- Power Type: Lead-acid
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the SERB10, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Semi-Electric Self-Lifting Stacker |
|---|---|
| Rated Capacity (kg) | 1000 |
| Load Centre (mm) | 420 |
| Lift Height (mm) | 800/900/1000/1100/1200/1300/1500/1600 |
| Power Type | Lead-acid |
| Operation Type | Walkie |
| Service Weight (kg) | 285-324 |
| Wheelbase (mm) | 780 |
| Overall Length (mm) | 1544 |
| Overall Width (mm) | 835/955 |
| Fork T/W/L (mm) | 60/193/1150 |
| Lifting Speed laden/unladen | 55 mm/s |
| Lowering Speed | 100 mm/s |
| Lift Motor (kW) | 1.6 |
| Battery | 12 V / 52 Ah |
