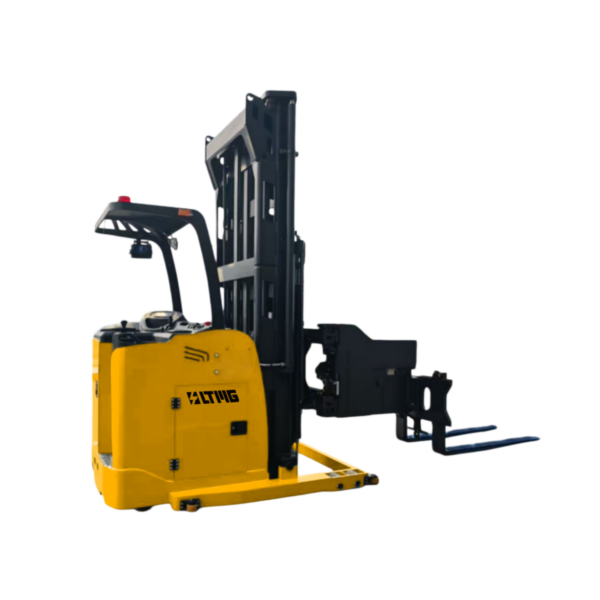

LTMG FRB16-S Reach Truck
- Rated Capacity (kg): 1600
- Load Centre (mm): 600
- Lift Height (mm): 6000
- Power Type: Electric
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the FRB16-S, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Reach Truck (side-standing, 3-way) |
|---|---|
| Rated Capacity (kg) | 1600 |
| Load Centre (mm) | 600 |
| Lift Height (mm) | 6000 |
| Power Type | Electric |
| Operation Type | Side-standing |
| Service Weight (kg) | 6500 |
| Wheelbase (mm) | 1700 |
| Overall Length (mm) | 3065 |
| Overall Width (mm) | 1550 |
| Fork T/W/L (mm) | 45/125/1200 |
| Travel Speed laden/unladen (km/h) | 8/7 |
| Lifting Speed laden/unladen | 0.30/0.26 m/s |
| Lowering Speed | 0.36/0.39 m/s |
| Drive Motor (kW) | 6.5 |
| Lift Motor (kW) | 15 |
| Battery | 48 V / 400 Ah lead-acid |
| Turning Radius (mm) | 1985 |
| Aisle Width (mm) | 1600 stacking (1200×1200) |
