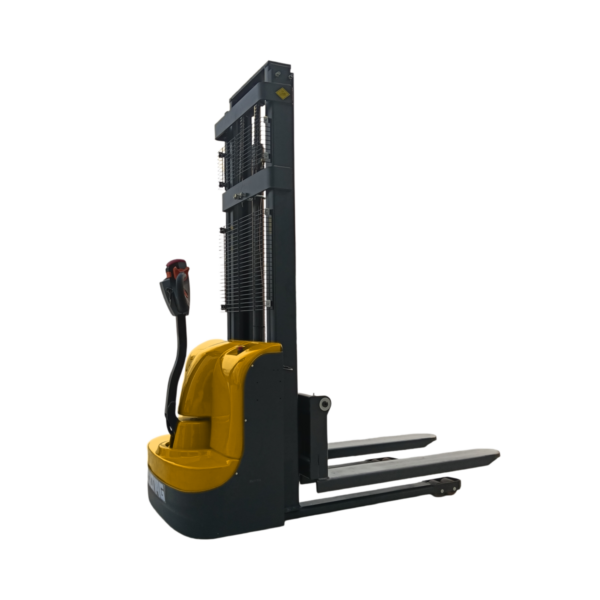

LTMG ERB15 Electric Pallet Stacker
- Rated Capacity (kg): 1500
- Load Centre (mm): 600
- Lift Height (mm): 2500
- Power Type: Electric
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the ERB15, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Electric Pallet Stacker (walkie) |
|---|---|
| Rated Capacity (kg) | 1500 |
| Load Centre (mm) | 600 |
| Lift Height (mm) | 2500 |
| Power Type | Electric |
| Operation Type | Pedestrian |
| Service Weight (kg) | 570 |
| Wheelbase (mm) | 1190 |
| Overall Length (mm) | 1810 |
| Overall Width (mm) | 820 |
| Fork T/W/L (mm) | 60/170/1150 |
| Travel Speed laden/unladen (km/h) | 4.0/4.5 |
| Lifting Speed laden/unladen | 85/135 mm/s |
| Lowering Speed | 95/95 mm/s |
| Gradeability laden/unladen (%) | 3/10 |
| Drive Motor (kW) | 0.75 |
| Lift Motor (kW) | 2.2 |
| Battery | 24 V / 85 Ah |
| Turning Radius (mm) | 1385 |
| Aisle Width (mm) | 2210 |
