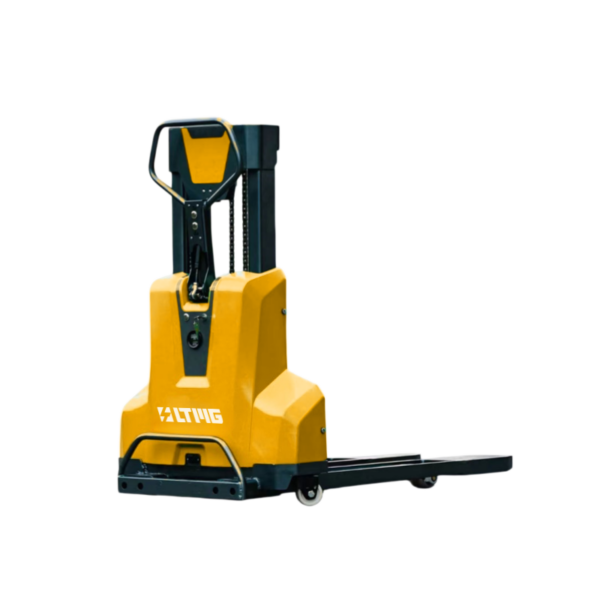

LTMG SERB03 Semi-Electric Self-Lifting Stacker
- Rated Capacity (kg): 300
- Load Centre (mm): 400
- Lift Height (mm): 800-1300
- Power Type: Lead-acid
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the SERB03, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Semi-Electric Self-Lifting Stacker |
|---|---|
| Rated Capacity (kg) | 300 |
| Load Centre (mm) | 400 |
| Lift Height (mm) | 800-1300 |
| Power Type | Lead-acid |
| Operation Type | Walkie |
| Service Weight (kg) | 166-176 |
| Wheelbase (mm) | 749 |
| Overall Length (mm) | 1467 |
| Overall Width (mm) | 708 |
| Fork T/W/L (mm) | 50/170/1150 |
| Lifting Speed laden/unladen | 40 mm/s |
| Lowering Speed | 50 mm/s |
| Lift Motor (kW) | 0.45 |
| Battery | 24 V / 12 Ah |
