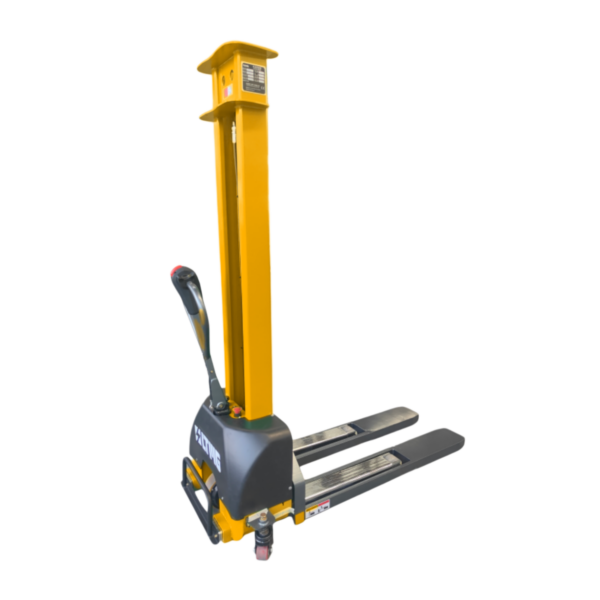

LTMG ERB10 Electric Self Loading Stacker
- Rated Capacity (kg): 1000
- Load Centre (mm): 400
- Lift Height (mm): 800/900/1000/1100/1200/1300/1500/1600
- Power Type: Li-ion
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the ERB10, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Electric Self Loading Stacker |
|---|---|
| Rated Capacity (kg) | 1000 |
| Load Centre (mm) | 400 |
| Lift Height (mm) | 800/900/1000/1100/1200/1300/1500/1600 |
| Power Type | Li-ion |
| Operation Type | Walkie |
| Service Weight (kg) | 302-347 (by lift height) |
| Wheelbase (mm) | 924 |
| Overall Length (mm) | 1603 |
| Overall Width (mm) | 852 |
| Fork T/W/L (mm) | 70/190/1195 |
| Travel Speed laden/unladen (km/h) | 1/3.5 |
| Lifting Speed laden/unladen | 55 mm/s |
| Lowering Speed | 100 mm/s |
| Gradeability laden/unladen (%) | 5/10 |
| Drive Motor (kW) | 0.8 |
| Lift Motor (kW) | 1.6 |
| Battery | 48 V; 15 Ah std, 30 Ah opt./quick-change |
