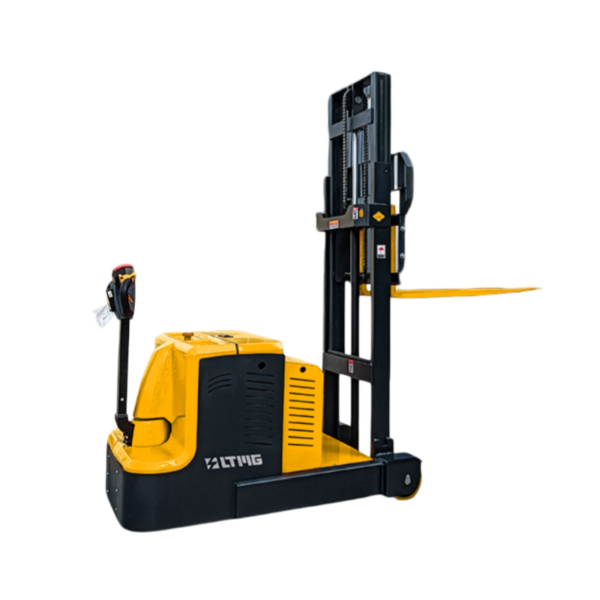

LTMG ERB12M Electric Pallet Stacker
- Rated Capacity (kg): 1200
- Load Centre (mm): 450
- Lift Height (mm): 1670
- Power Type: Electric
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the ERB12M, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Electric Pallet Stacker (full electric walkie) |
|---|---|
| Rated Capacity (kg) | 1200 |
| Load Centre (mm) | 450 |
| Lift Height (mm) | 1670 |
| Power Type | Electric |
| Service Weight (kg) | 1600 |
| Wheelbase (mm) | 1200 |
| Overall Length (mm) | 2980 |
| Overall Width (mm) | 962 |
| Fork T/W/L (mm) | 65/180/920 |
| Travel Speed laden/unladen (km/h) | 3.0/3.5 |
| Lifting Speed laden/unladen | 110/130 mm/s |
| Lowering Speed | 120/100 mm/s |
| Gradeability laden/unladen (%) | 3/6 |
| Drive Motor (kW) | 0.75 |
| Lift Motor (kW) | 2.2 |
| Battery | 2 x 12 V / 180 Ah |
| Turning Radius (mm) | 1550 |
| Aisle Width (mm) | 2850 |
