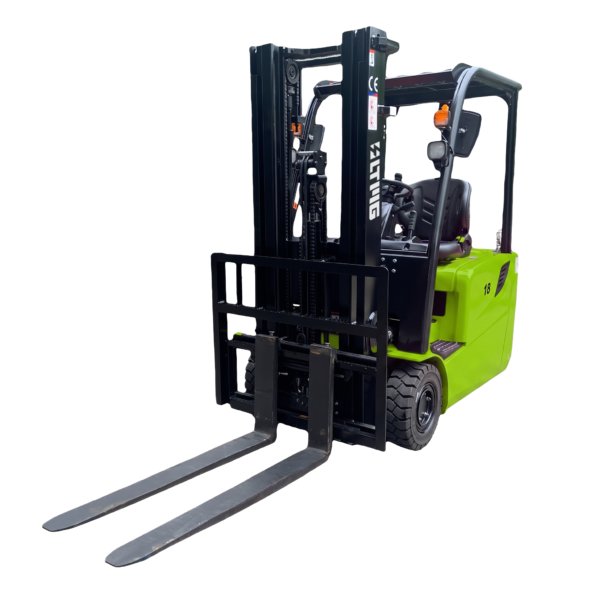

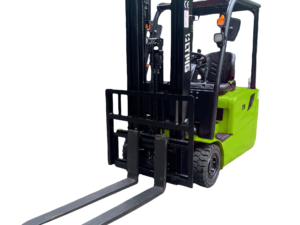

LTMG FBSR18 Three-wheel Electric Forklift
- Capacity: 1.8 Ton
- Rated Capacity (kg): 1800
- Load Centre (mm): 500
- Lift Height (mm): 3000
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the FBSR18, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Three-wheel Electric Forklift |
|---|---|
| Capacity | 1.8 Ton |
| Rated Capacity (kg) | 1800 |
| Load Centre (mm) | 500 |
| Lift Height (mm) | 3000 |
| Service Weight (kg) | 3520 |
| Turning Radius (mm) | 1690 |
| Wheelbase (mm) | 1460 |
| Travel Speed (Full Load km/h) | 13/14 |
| Lifting Speed (Full Load mm/s) | 340/400 |
| Gradeability (Full Load %) | 15 |
| Battery Voltage/Capacity | 48V/490Ah lead-acid; 80V/210Ah Li |
| Tire Front | 18×7-8 |
| Tire Rear | 16×6-8 |
| Drive Motor (kW) | 2×4.5 |
| Lift Motor (kW) | 8.6 |
| Fork Size (L×W×T mm) | 920x120x35 |
| Mast Tilt Angle (F/R) | 6/6 |
