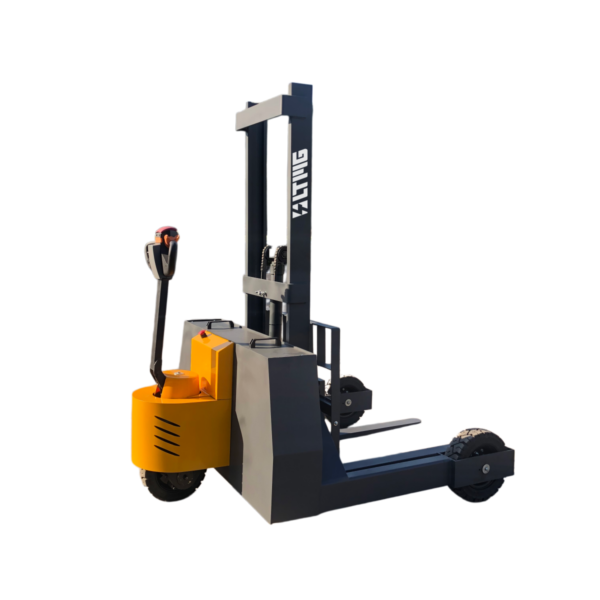

LTMG ERB25 Electric Pallet Stacker
- Rated Capacity (kg): 2500
- Load Centre (mm): 500
- Lift Height (mm): 1600/2000/2500/3000
- Power Type: Electric
- Description
- Additional information
- Reviews (0)
Description
For pricing, availability and technical advice on the ERB25, contact TTC Heavy Equipment, authorized LTMG dealer in Egypt.
Additional information
| Type | Electric Pallet Stacker |
|---|---|
| Rated Capacity (kg) | 2500 |
| Load Centre (mm) | 500 |
| Lift Height (mm) | 1600/2000/2500/3000 |
| Power Type | Electric |
| Service Weight (kg) | 1250 |
| Wheelbase (mm) | 1430 |
| Overall Length (mm) | 2070 |
| Overall Width (mm) | 1550 |
| Fork T/W/L (mm) | 40/122/1070 |
| Travel Speed laden/unladen (km/h) | 4/5 |
| Lifting Speed laden/unladen | 65/80 mm/s |
| Gradeability laden/unladen (%) | 5/10 |
| Drive Motor (kW) | 1.2 (PMSM) |
| Lift Motor (kW) | 3 |
| Battery | 48 V / 52 Ah |
| Turning Radius (mm) | 1578 |
